單層、多層網帶式食品烘干箱技術參數 / Technical Parameter of Single layer/Multi layer Belt Type Dryer:
|
型號 Model |
總功率 Installed Power |
燃燒器 Burner |
能源消耗 Fuel Consumption |
加熱溫度 Heating Temp |
干燥時間 Drying Time |
產量 Capacity |
外形尺寸 Dimension |
|
三層電烘箱 3-layer Electrical Dryer |
26kw |
Electricity |
--- |
-140℃ |
4-8min |
100-150kg/h |
4800*1150*1750mm |
|

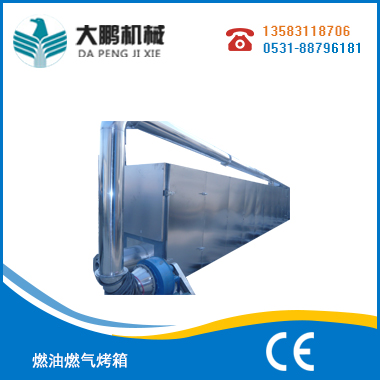

三層燃油/燃?xì)夂嫦?/span> 3-layer Diesel/Gas Dryer |
5.1kw |
120000kcal |
7-10kg/h |
-140℃ |
4-14min |
200-250kg/h |
6850*2100*2300 |
|
五層燃油/燃?xì)夂嫦?/span> 5-layer Diesel/Gas Dryer |
6kw |
150000kcal |
10-13kg/h |
-140℃ |
7-25min |
200-350kg/h |
7200*1500*3000 mm |
|
七層燃油/燃?xì)夂嫦?/span> 7-layer Diesel/Gas Dryer |
8kw |
200,000kcal |
10-20kg/h |
-250℃ |
7~35min |
300~500kg/h |
7200*1700*3400mm |
|
高溫滾筒烤箱 Drum Roaster |
52.25kw |
*** |
*** |
-350℃ |
30~90s |
80~250kg/h |
4100*1255*1990mm |
|
高溫烘干機 High Temperature Dryer |
64.45kw |
--- |
6.8m³/h (氣gas) |
-500℃ |
3-9min |
可調Adjustable |
5000*1500*1600mm |
|
單層往復式烘干機 Single Layer Recycling Dryer |
65kw |
120000kcal |
5-7kg/h |
70-110℃ |
可調Adjustable |
200-400kg |
7500*2400*2000mm |
|
五層往復式烘干箱上加熱 5-layer Recycling Dryer Top Heating |
6kw |
200000kcal |
10-13kg/h |
-140℃ |
7-25min |
200-350kg/h |
9100*3000*3750mm |
